BT46-NC PSR Atlas Bipod in Black with No Clamp

larger image

BT46-NC PSR Atlas Bipod in Black with No Clamp

larger image

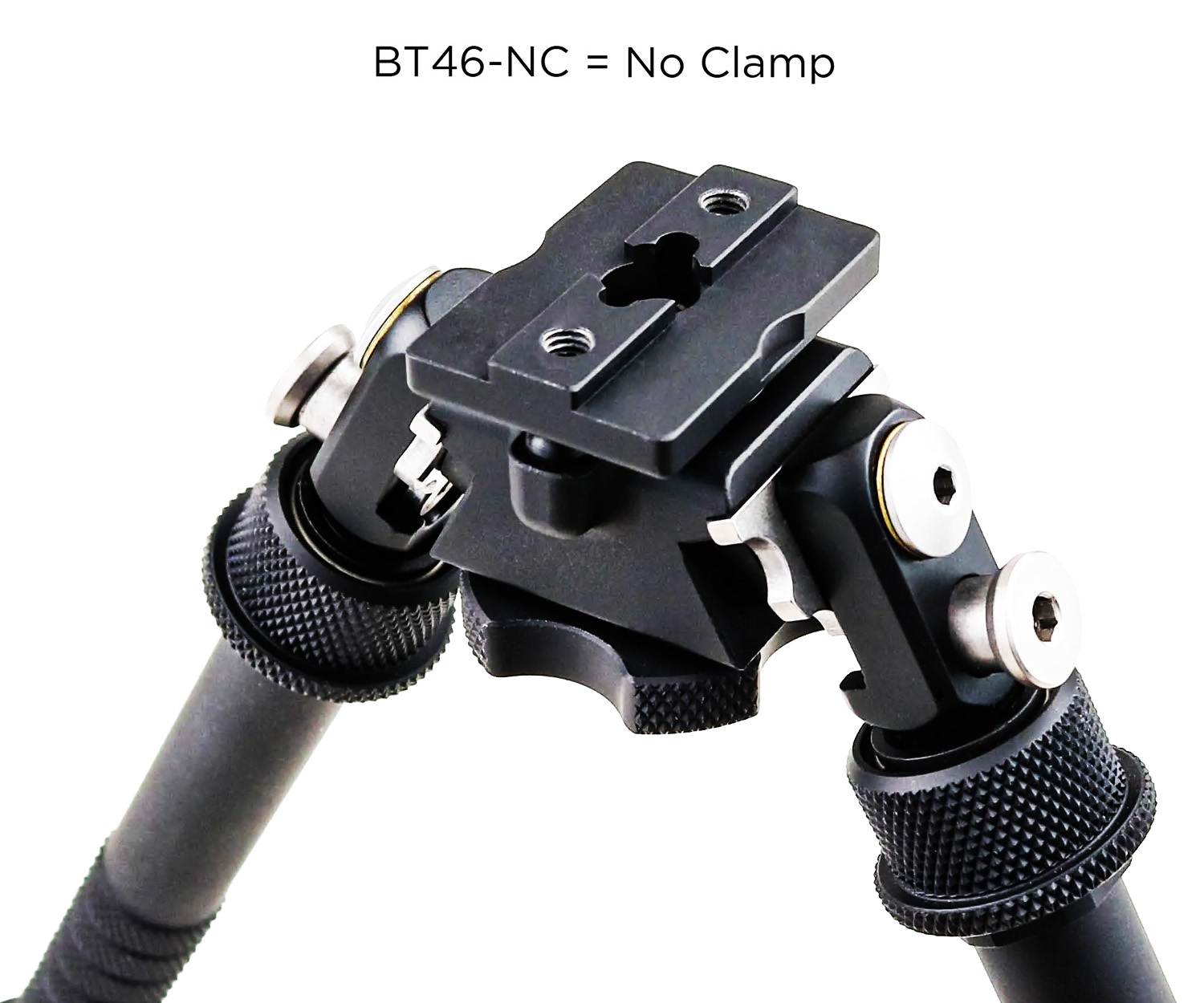

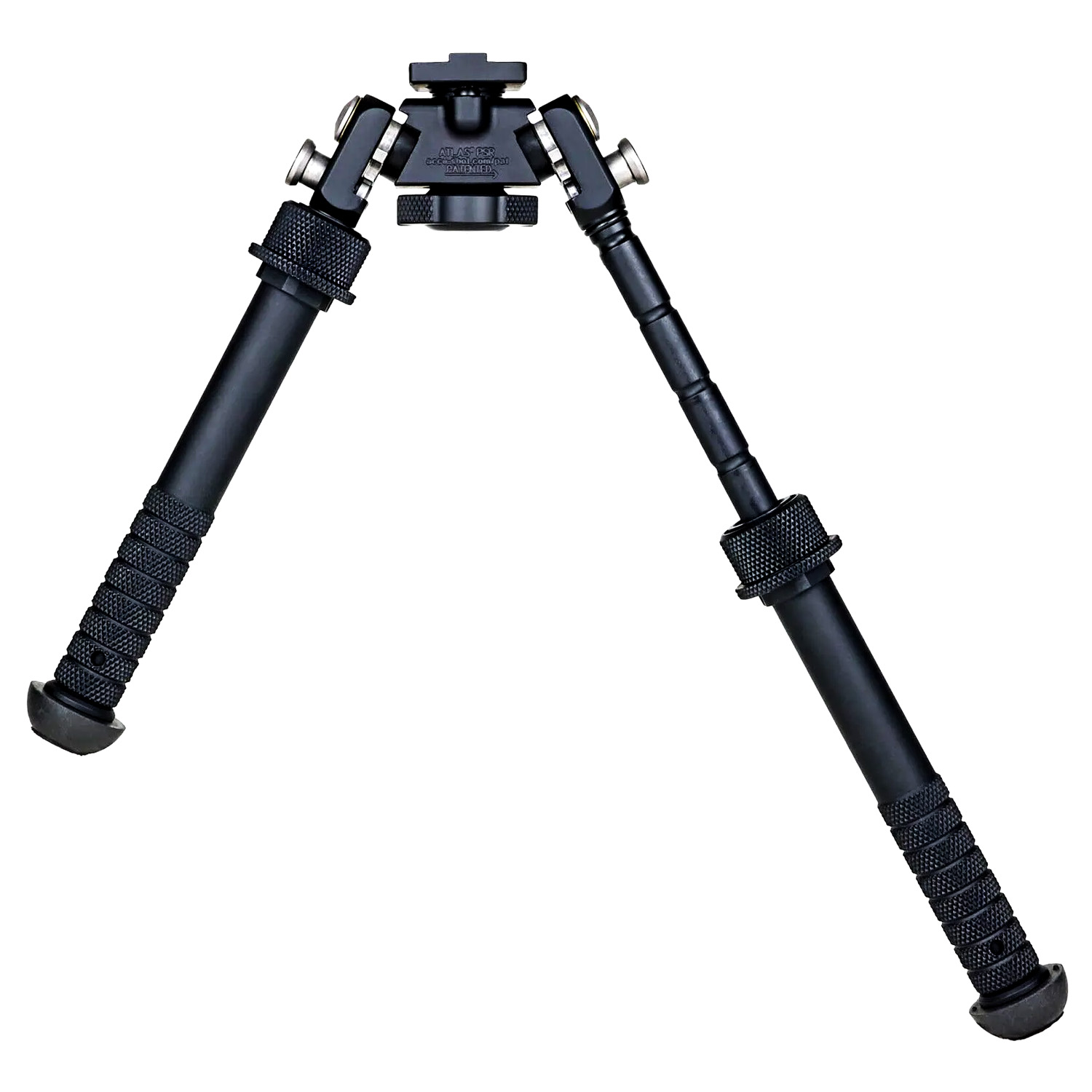

The BT46-NC PSR (Precision Sniper Rifle) Atlas Bipod is the "No Clamp" version, intended for shooters who want to select their own mounting solution. The bipod uses the standard Atlas two-hole mounting interface (1.100" hole spacing with 10-32 threads) and requires a 17S-size mount or adapter with the same pattern. This lets you run the clamp you prefer (Picatinny lever mount, ARCA dovetail clamp, dual-purpose clamp, etc.), rather than being locked into one mounting style.

The BT46-NC is built from 6061-T6 aluminum with strengthened inner legs made from 7075-T6 aluminum. All aluminum parts are MIL-SPEC Type III hardcoat anodized. Stainless steel components have been heat-treated. The PSR Atlas series was developed through military testing for the SOCOM PSR program (with the BT46-LW17 being the selected contract configuration).

Specifications:

Color: Black
Height Range: 5 – 9.4" (6.5" at 90°)
Preloaded Pan: 30 degrees
Preloaded Cant: 30 degrees

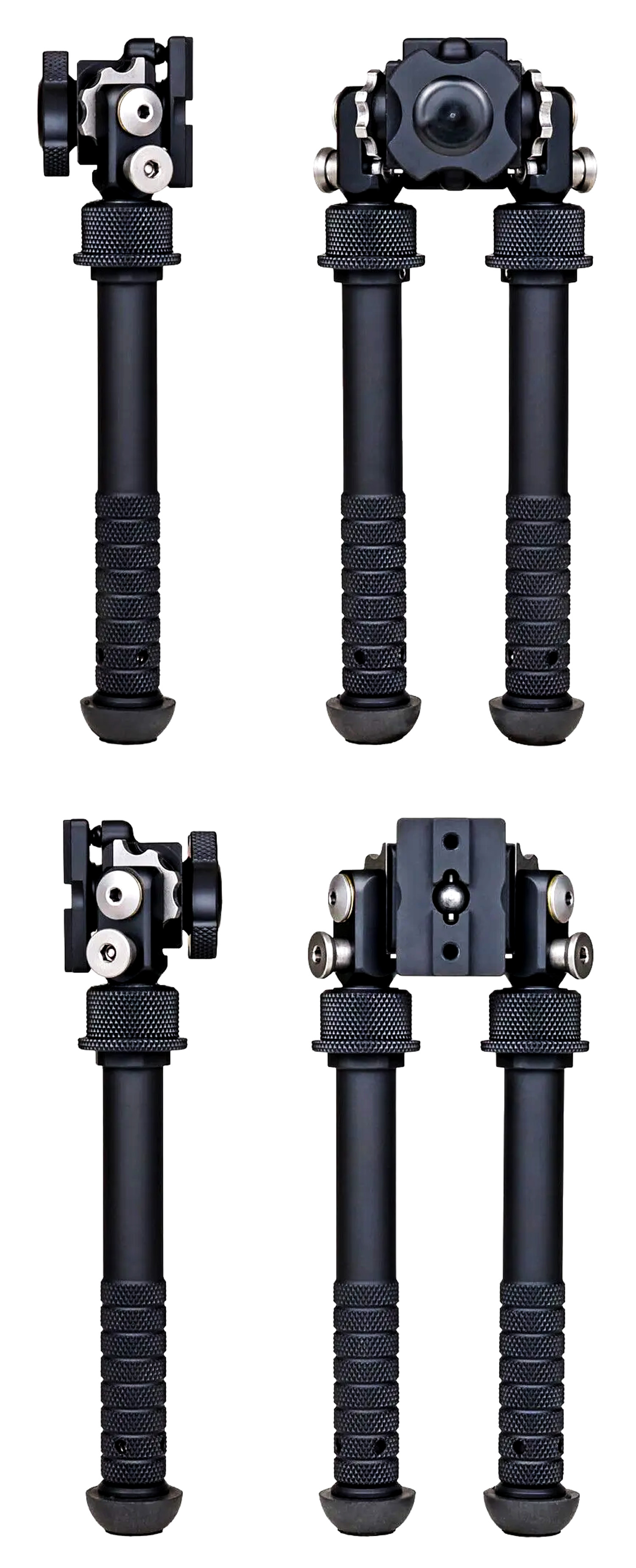

5 leg positions: 0, 45, 90, 135 and 180 degrees
Non-Rotating Legs: Outer leg does not rotate around inner leg
Weight: 11.42 ounces (approx.)
Footprint: 8 – 11"

Additional Features:

No Clamp interface (mount/clamp not included)
Two-hole mounting pattern: 1.100" spacing, 10-32 threads
Includes two 10-32 x 3/8" flathead socket screws (for attaching your chosen mount/adapter)

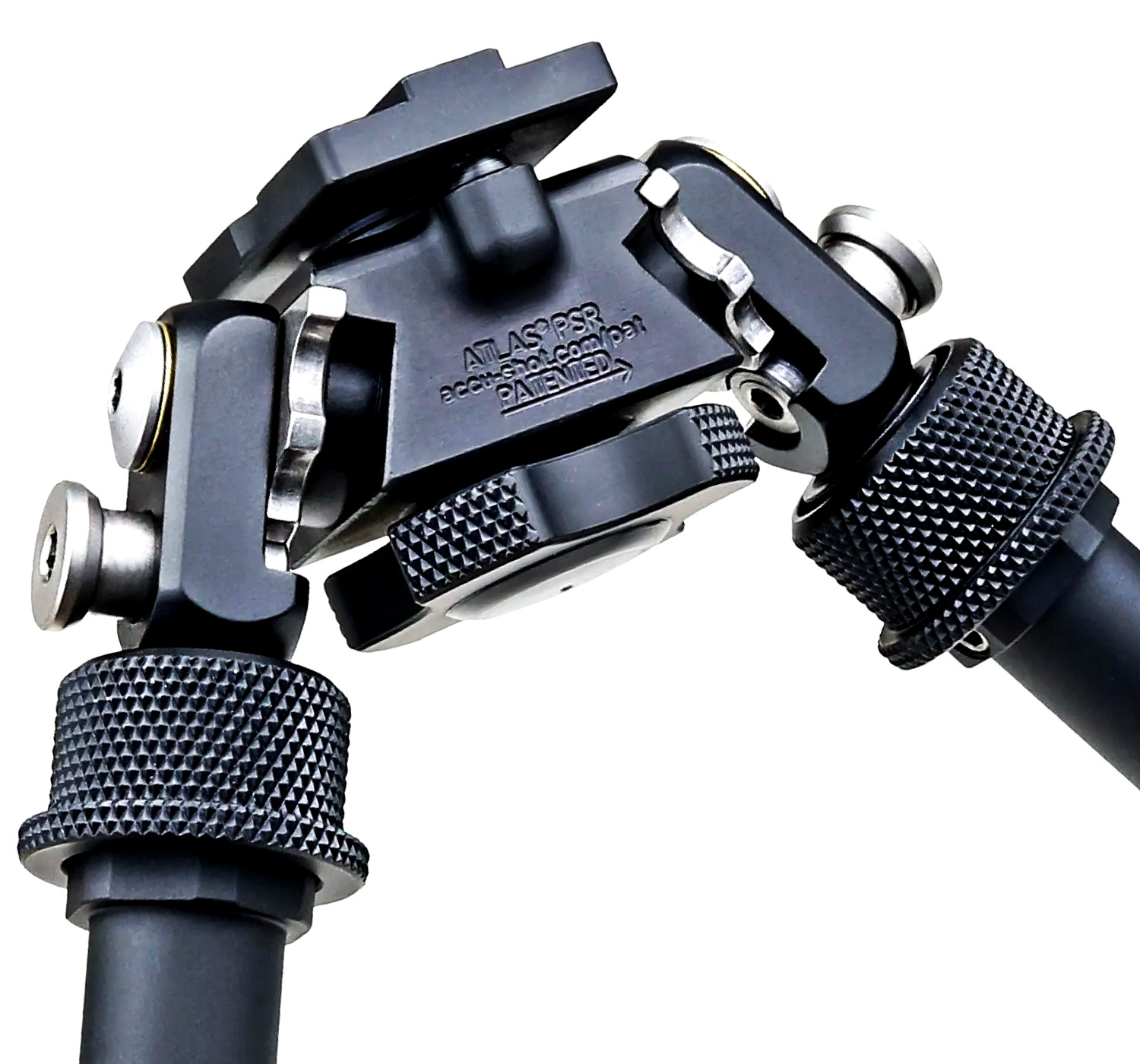

Preload on pan and cant can be tightened using the knurled knob
Position Button 0.5" diameter
Fore and Aft pivot limiting Bosses
Larger, stronger inner legs
Designed, engineered, machined, and assembled in the United States of America.

Don't settle for less. Choose an American-made bipod that will provide you with the highest performance, unmatched durability, and unsurpassed reliability.

Model: BT46-NC
Shipping Weight: 0.9 lbs
4 Units in Stock
Manufactured by: B&T INDUSTRIES, LLC
